Semi Automatic Mannual L Sealer With Tunnel

Send Inquiry

Request To Call Back

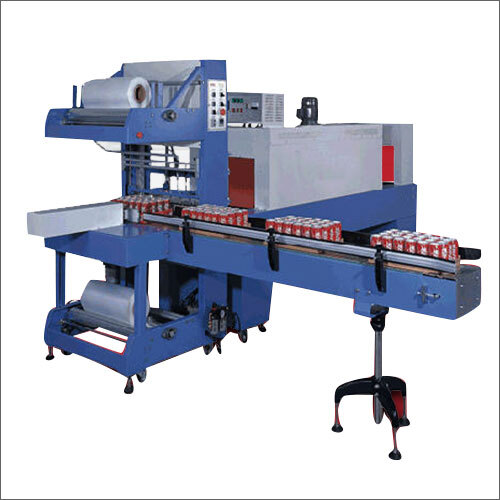

Semi Automatic Mannual L Sealer With Tunnel

Name: Semi Automatic Mannual L Sealer With Tunnel
Brand: INTERO PACTEC INDIA PVT LTD
Price: 70000 INR
Availability: InStock

Price 70000 INR/ Number

Get a Price/Quote

MOQ : 1 , , Number

Semi Automatic Mannual L Sealer With Tunnel Specification

Type
Semi Automatic Manual L Sealer With Tunnel

Material
Mild Steel (MS) Frame & Stainless Steel (SS) Working Surface

Capacity
500 - 1200 packs/hour (Dependent on product size and operator speed)

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Temperature and Conveyor Speed Controls

Shrink Speed
Adjustable Conveyor up to 15 meters/min

Air Pressure
Not Required (Manual Operation)

Roll Diameter
Maximum 300 mm (Film Roll)

Voltage
220V/50Hz, Single Phase

Dimension (L*W*H)
1800mm x 650mm x 1450mm

Weight
Approximately 220 kg

Color
Industrial Grey with Blue Accents

Heat Source
Infrared Heating Elements

Application
Shrink Wrapping for Food, Cosmetics, Electronics, Stationery, and General Packaging

Packing Material
PE, PVC, Polyolefin and other shrink films

Tunnel Length
1000 mm

Sealing Area
550mm x 450mm

Film Thickness
15 80 microns

Cooling System
Heavy Duty Blower Fan

Working Temperature
50C - 260C (Adjustable)

Tunnel Opening Size
450mm (W) x 250mm (H)

Conveyor Material
High Temperature Resistant Conveyor Belt

Noise Level
< 60 dB

Power Consumption
4.5 - 6.5 kW

Semi Automatic Mannual L Sealer With Tunnel Trade Information

Minimum Order Quantity
1 , , Number

Payment Terms
Cheque, Cash in Advance (CID)

Supply Ability
7 Per Month

Delivery Time
5 Days

Main Domestic Market
South India, Karnataka, Kerala, Pondicherry, Tamil Nadu

About Semi Automatic Mannual L Sealer With Tunnel

Semi Automatic Mannual L Sealer With Tunnel is used for Shrink packing of products using POF / LDPE shrink film is easy to use and needs low maintenance. The product to be wrapped is inserted into the film and sealed in the L a sealer manually or option of Pneumatic sealing is also available. After sealing the products moves to the shrink tunnel with the help of auto take off system. The product with the film shrinks in the tunnel at set temperature and speed of travel. Beside, this Semi Automatic Mannual L Sealer With Tunnel is offered at market leading prices to our esteemed clients.

Versatile Shrink Wrapping Solution

This L Sealer With Tunnel is engineered for versatility, enabling shrink wrapping of multiple product types using different films. Its adjustable settings accommodate varying product sizes and shrink film thickness, making it ideal for manufacturers seeking flexibility in packaging operations. The combination of infrared heat and a reliable conveyor system guarantees uniform results at up to 15 meters/min.

Durable and User-Friendly Design

Constructed with a sturdy mild steel frame and a stainless steel work surface, the machine offers longevity and ease of maintenance. Semi-automatic operation with manual sealing provides greater control over the sealing process. The quiet operation (<60 dB) and ergonomic controls make it suitable for busy production environments.

FAQ's of Semi Automatic Mannual L Sealer With Tunnel:

Q: How does the Semi Automatic Manual L Sealer With Tunnel operate for shrink wrapping?

A: The machine works by manually loading products into the sealing area, applying the shrink film, and then activating the L sealer. Once sealed, the product moves through the heated tunnel, where the infrared elements shrink the film uniformly around the pack before cooling via a blower.

Q: What types of shrink films are compatible with this machine?

A: It supports PE, PVC, Polyolefin, and other shrink films with thicknesses ranging from 15 to 80 microns, offering flexibility for packaging various products.

Q: When should I adjust the temperature or conveyor speed settings?

A: Adjustments to temperature (between 50C and 260C) and conveyor speed (up to 15 meters/min) should be made based on the type and thickness of shrink film, as well as the product size, to achieve optimal shrink results and prevent damage.

Q: Where can this L Sealer With Tunnel be used effectively?

A: It's widely suitable for use in packaging units, manufacturing lines, exporting facilities, and supplier operations, particularly in industries processing food, cosmetics, electronics, and stationery products.

Q: What is the shrink wrapping process with this machine?

A: The process involves placing the item within the film on the sealing area, manually sealing it in an L-shaped pattern, and sending it through the tunnel. The adjustable infrared heating elements shrink the film, while the blower fan rapidly cools it for a tight, professional finish.

Q: What are the main benefits of this machine for packaging operations?

A: Its semi-automatic, manual operation provides precise control, while the adjustable features enable versatile, high-volume packaging with quality results. The durable construction and quiet, efficient operation enhance productivity and minimize downtime.
